CMZ TTS SERIES DUAL-SPINDLE CNC LATHES - MULTI-TURRET LATHES

Description

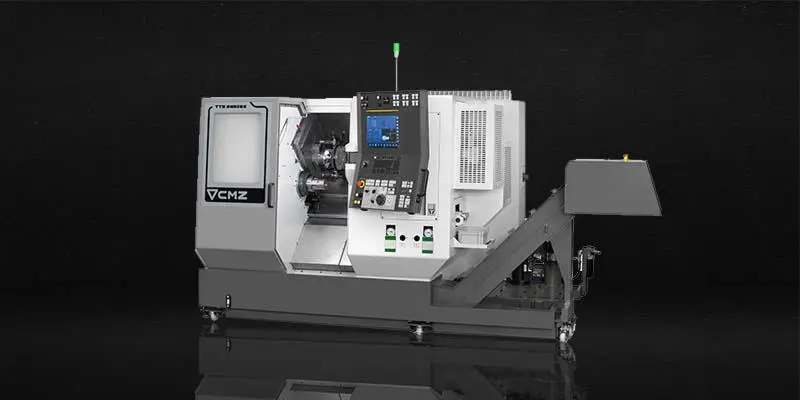

This Twin CNC Lathe for bar turning completes the TT range. It is the shortened version of TTL. It is designed for turning small parts and competes with sliding head lathes.

TWIN SPINDLE LATHE FOR PARTS MADE FROM BAR

The TTS Series is the smallest lathe in the CMZ product range and part of our multi-turret range of turning centres. The TTS is ideal for machining complex mill-turn parts from bar. This is due to its accuracy, repeatability, and reliability, as well as powerful (13.2Kw, 26.8Nm) driven tools that are capable of running at 12,000rpm all day long. Both turrets are oil-cooled. All motors are direct drive (without belts).

The TTS has been specifically designed to significantly reduce cycle times and is capable of superimposed machining (cutting with 3 tools at once). Y-axis travel of +-31mm is available on both turrets. This machine is also much quicker to set compared to Swiss type machines. All this amounts to achieving an efficient production solution.

The X3 and Z3 axes on this twin spindle lathe for machining from bar allow multiple possibilities: work with the sub-spindle moved off centre and work with the tailstock, machine with two turrets on the same spindle, cut simultaneously with 3 tools (superimposed machining), or balanced cutting, Oscillation Cutting is available on both turrets and both spindles. A dual-spindle CNC lathe aimed at companies producing parts from bar.
