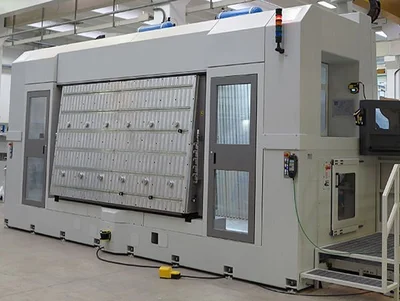

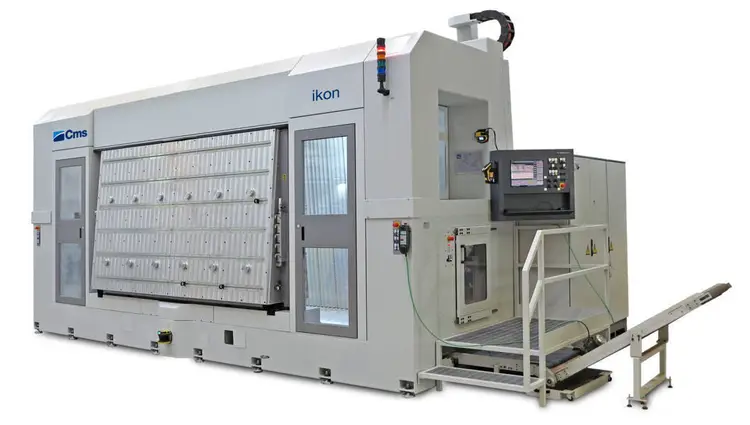

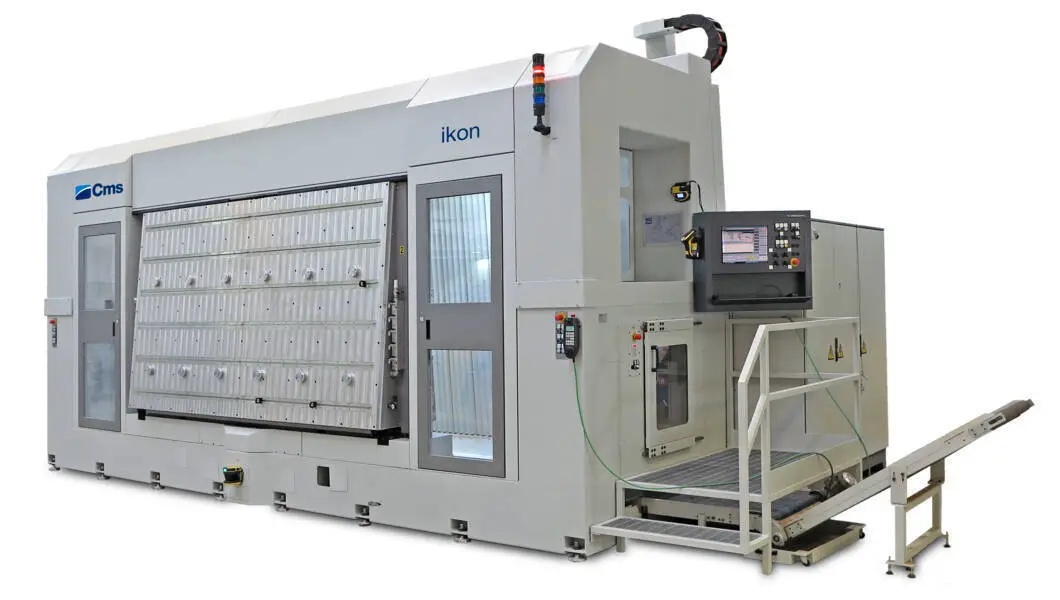

IKON DB (Double Bridge) Vertical rotating tables with double 5-axis operating unit

Description

ikon is a 5-axis geometry machining centre with two vertical tables for the processing of aluminium and composites materials. Equipped with one or two horizontal operating units, it ensures high productivity. ikon allows a complete inner view by the operator.

Advantages:

POWER AND ACCURACY

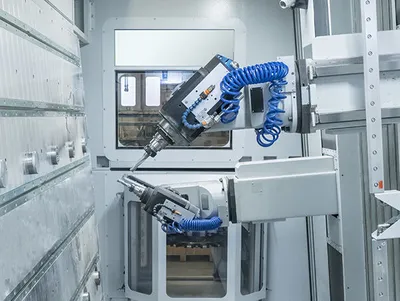

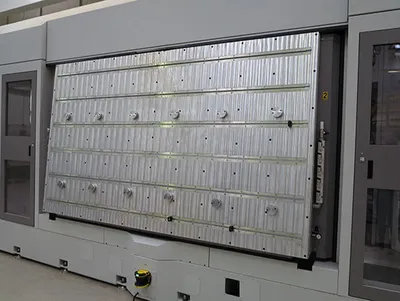

ikon is fitted with 2 vertical rotary tables for equipping and loading/unloading of workpieces without stopping operations and double 5-axis operating unit for simultaneous machining of 2 workpieces or combined machining of both units on a large-sized workpiece.
High operating power, geometric precision and reliability even in the most complex machining operations lead to a single result: producing better workpieces more quickly.

TOTAL FLEXIBILITY
The geometry of the machining center, fitted with vertical rotary tables, is characterized by extremely compact dimensions, 41% smaller than usual configurations, to allow handy and cost-effective installation in all production contexts. Besides, the accessibility for loading/unloading outside the work area makes the operation safe and efficient as well as easily-integrated in highly-automated contexts.

DUST? NO PROBLEM!

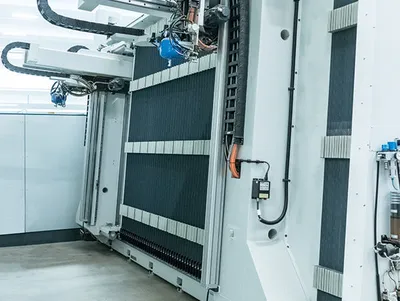

The machine can be completed with a total enclosure to retain dust, chips and noise produced during machining and for maximum safety of the operators. A motorized belt attends to the automatic evacuation of chips, which are dropped due to the special vertical table geometry of the machining centre, while special suction inlets carry out the dust cleaning operation.

PRODUCE MORE AND BETTER: TODAY AND TOMORROW
The advanced design of the monobloc structure, a result of CMS’ research centre, and the technical solutions adopted guarantee rigidity and precision over time so that the high finish and accuracy of the workpieces remains a constant feature of your production over the years.
