High-performance moving bridge machining center

Description

The CMS tao-x machining center is designed to machine aluminum plates, light alloys, titanium and advanced composite materials. Precision mechanics, automotive and aerospace are just some of the sectors that can benefit most from the technology of this new machining center.

MAIN FEATURES
• Flexibility
• Excellent holding power of the clamping systems
• Precision
• Very high finishing quality
• Dynamic balance

The Tao-x is equipped with double rails on both sides for the bridge movement.
The rails are anchored to a massive base that guarantees long-term stability, balance
and consistency. The portal can also be configured with a gantry system with dual drive
on the X axis and dual drive on the Y axis to completely eliminate backlash and achieve
category-leading performance

FOR CMS YOUR SAFETY IS IMPORTANT!
Tao-x is designed to the highest safety standards to give you and your operator complete peace of mind.

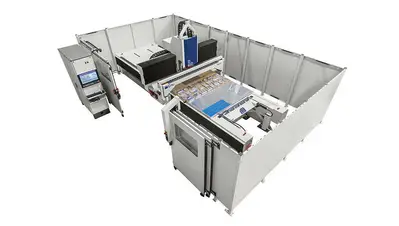

The machine is equipped with perimeter guards with thick panels and polycarbonate windows, and systems that comply with EN ISO 16090-1:2018 and EN ISO 14120:2015 safety standards.

Advantages:

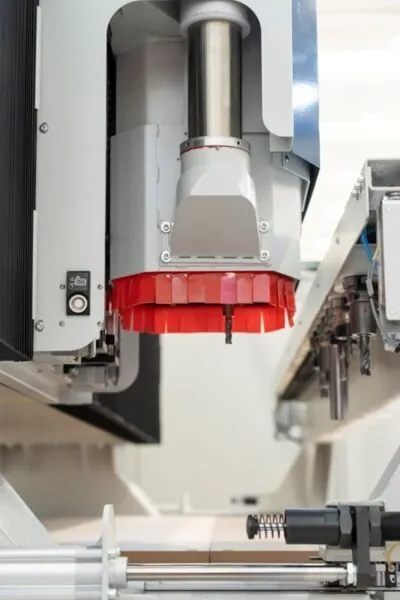

Electronic hood with metal channels and Quick-R ring for quick replacement of the straps/brushes

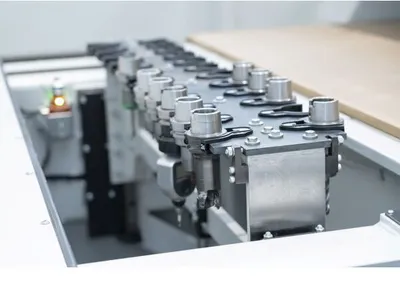

Tool magazines up to 71 positions

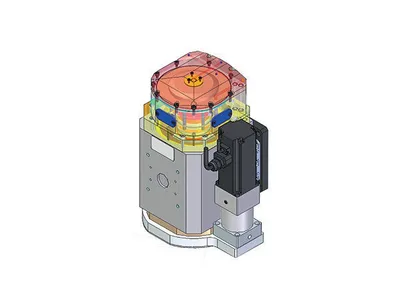

Spindles up to 30 kW (opt.4th axis) with internal and external path to ensure MQL

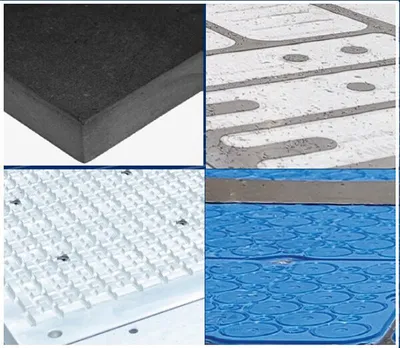

Different tables available for maximum flexibility: nesting, VilMill, VACMAT
