Used DMS FREEDOM 4 | Vertical Machining Centers

Description

Compact Industrial CNC for Small Shops and Specialty Manufacturing

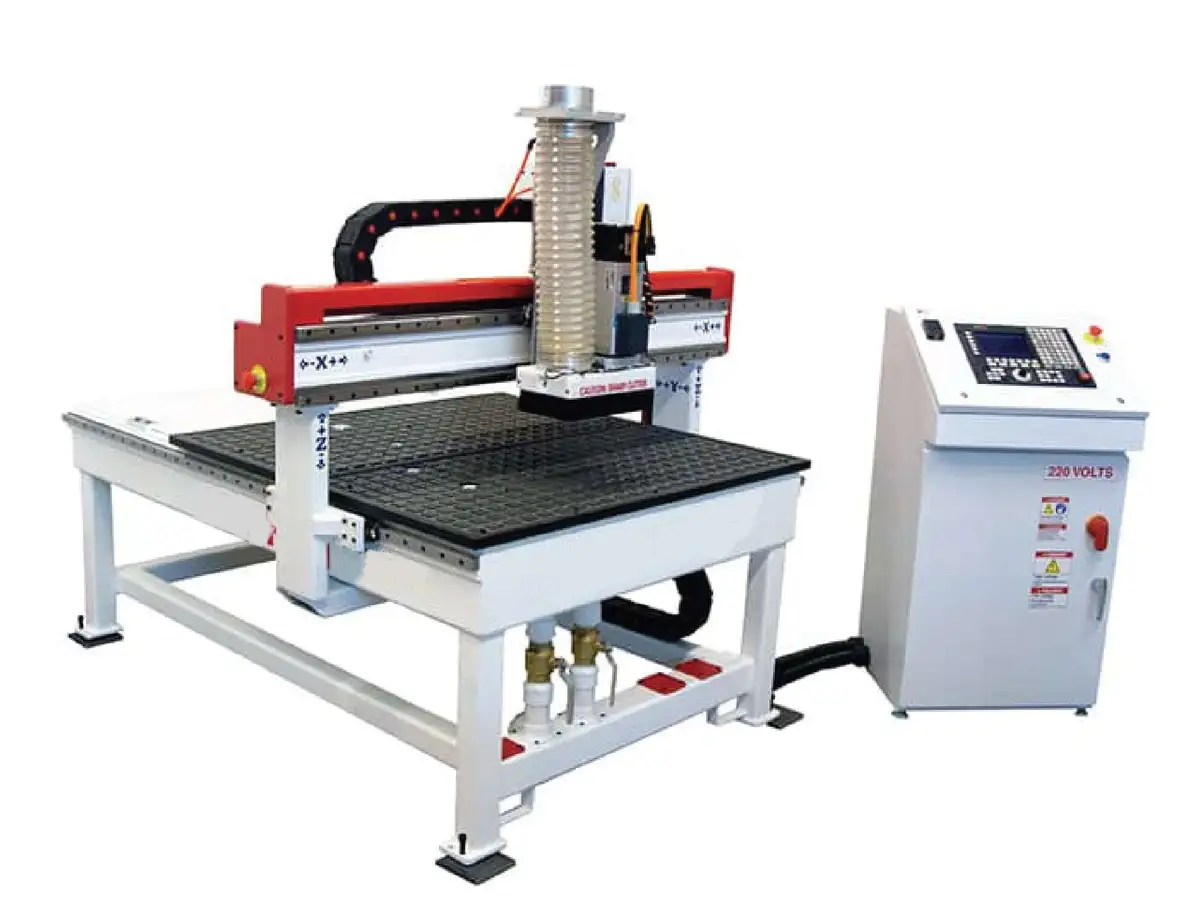

The Freedom 4 CNC Router by Diversified Machine Systems (DMS) delivers industrial-grade performance in a compact footprint. Designed for tight workspaces like garage shops, home-based operations, and specialty manufacturing facilities, the Freedom 4×4 offers powerful, precise motion control in a size-conscious design.

With a full 48″ x 48″ cutting area and 12″ of Z-axis travel, it’s ideal for applications like orthotics, custom plastics, and small-run prototyping. Built on a rigid steel frame with high-speed motion components, the Freedom 4×4 is a trusted choice for small businesses and professionals who need precision without sacrificing space.

Standard lead time: approximately 14 weeks

Key Advantages
• 3-axis CNC router with moving gantry design
• Fagor 8070 OL industrial controller with 17” color LCD
• Rigid steel frame for stability and repeatability
• Ball screw drive on all axes for high-precision motion
• Fagor AC servo motors & amplifiers across all axes
• 4’x4’ phenolic table (aluminum available as upgrade)
• Dust collection hood accepts 5″ line from user’s system
• Optional Becker vacuum pump: 10 or 15 HP
• Hiteco 10 HP electro spindle standard (optional upgrades available)
• Connectivity via Ethernet, USB, and Serial Port
