New NICOLAS CORREA FENIX | Traveling Column Milling Machines
Have one to sell?
ConditionNew
New
What makes the difference?

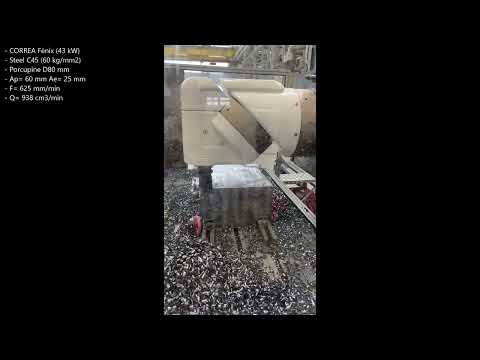

The FENIX represents a new concept of travelling column machine with lateral ram.
Highly robust based on a system of L-guided ram. High precision thanks to the mechanical system of ram droop correction. A flexible machine appropriate for roughing and finishing operations.
Table
Surface mm 4,000 x 1,000 / 25,000 x 2,500
Maximum load on the table Kg / m2 10,000 / 15,000
Traverses
Longitudinal X mm 4,000 - 25,000
Cross Y mm 1,250 - 1,500
Vertical Z mm 1,500 / 2,000 / 2,300 / 2,500 / 3,000
Feeds
Maximum X m/min 25
Y m/min 30
Z m/min 30
Spindle specifications
Taper ISO-50 Big Plus / HSK-100
Programmable speed rpm 6,000 - 6,000 - 10,000
Maximum power kW 33 - 43 - 42
Maximum torque Nm 990 - 1291 - 620
Automatic Universal Head
Numerical control Heidenhain or Siemens (Operate HMI)
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y, Z axes
Lamp in the working area
Hydraulic and cooling group
Absolute Heidenhain measurement rules in all axes
Exterior coolant with adjustable lance nozzles
Internal and external air flow
Guarding
Tele-service
vixion 4.0
Optional equipment
Other heads
Probes of measurement, tools and parts
Automatic changer for 30, 40, 60, 120 tools
Pick up station for 8 and 12 tools
Air/Coolant cleaning gun
Self cleaning filter
Floor plates
Rotary tables
Turning tables
Chip conveyors
Different enclosures according to user´s needs (Only in some models)
Coolant through the spindle
What makes the difference?
The FENIX represents a new concept of travelling column machine with lateral ram.
Highly robust based on a system of L-guided ram. High precision thanks to the mechanical system of ram droop correction. A flexible machine appropriate for roughing and finishing operations.
Table
Surface mm 4,000 x 1,000 / 25,000 x 2,500
Maximum load on the table Kg / m2 10,000 / 15,000
Traverses
Longitudinal X mm 4,000 - 25,000
Cross Y mm 1,250 - 1,500
Vertical Z mm 1,500 / 2,000 / 2,300 / 2,500 / 3,000
Feeds
Maximum X m/min 25
Y m/min 30
Z m/min 30
Spindle specifications
Taper ISO-50 Big Plus / HSK-100
Programmable speed rpm 6,000 - 6,000 - 10,000
Maximum power kW 33 - 43 - 42
Maximum torque Nm 990 - 1291 - 620
Automatic Universal Head
Numerical control Heidenhain or Siemens (Operate HMI)
Portable handwheel
Air-conditioned electrical cabinet
Linear guides in the X, Y, Z axes
Lamp in the working area
Hydraulic and cooling group
Absolute Heidenhain measurement rules in all axes
Exterior coolant with adjustable lance nozzles
Internal and external air flow
Guarding
Tele-service
vixion 4.0
Optional equipment
Other heads
Probes of measurement, tools and parts
Automatic changer for 30, 40, 60, 120 tools
Pick up station for 8 and 12 tools
Air/Coolant cleaning gun
Self cleaning filter
Floor plates
Rotary tables
Turning tables
Chip conveyors
Different enclosures according to user´s needs (Only in some models)
Coolant through the spindle
