New JTEKT TOYODA RB212 | Gantry Machining Centers (incld. Bridge & Double Column)

Have one to sell?
972-313-1987
info@chaparralmachinery.com
ConditionNew
Have one to sell?

Overview

Type:
Gantry Machining Centers (incld. Bridge & Double Column)
Manufacturer:
JTEKT TOYODA
Model:
RB212
Condition:
Build To Order
Status:
For Sale

Description

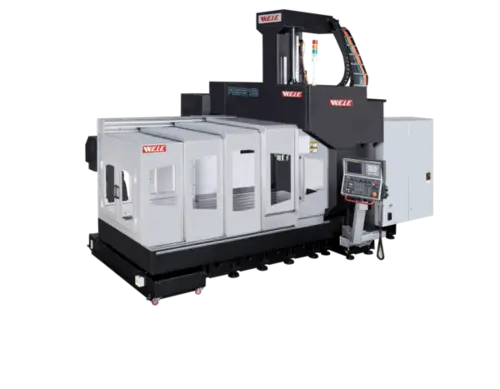

The RB212 is a heavy duty, double column, fixed rail bridge machine. This bridge features roller guides, a hydraulic counterbalance system on the headstock, and a two-speed, geared spindle.

X83.5"2,120.9 mm
Y47.2"1,198.9 mm
Z31.5"800.1 mm
Power25 hp18.6 kW
RPM6,000 RPM6,000 RPM
# ATC3232
TaperCAT-50CAT-50
Table-W43.3"1,099.8 mm
Table-L78.7"1,999 mm
Dimensions232" x 140" x 160"232" x 140" x 160"
Weight39600 (LBS)39600 (LBS)
