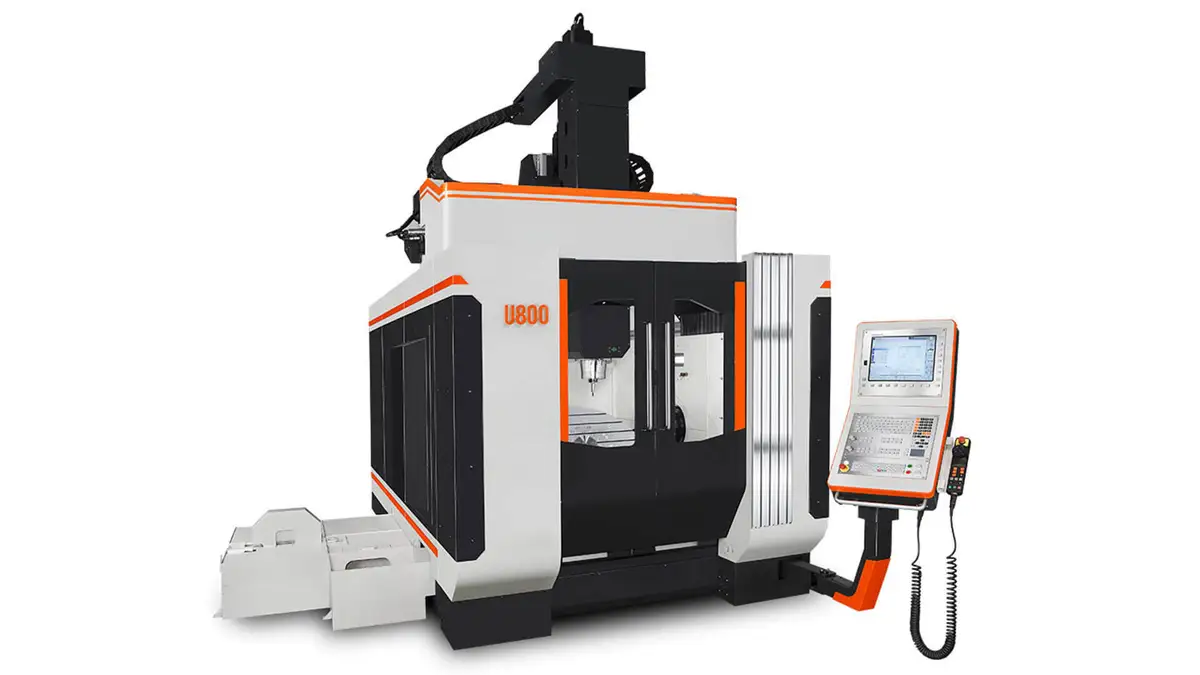

5-Axis High-Speed Machining and Outstanding Surface Finish
Vertical Machining Centers (5-Axis or More)High-Speed Machining and Outstanding Surface Finish: Great for Aerospace
- 31.49 x 45.28 x 29.52 in (799 x 1,150 x 749 mm) travels
- 31.49 in diameter (799 mm diameter) table working surface with 2,205 lbs (1,000 kg) maximum capacity
- 1,890 inches per minute (48 m/minute) rapids
- 945 in/minute (24 m/minute) cutting feed rates
- One-piece casting absorbs the thrust forces of high rapids and fast cutting feeds
- Gantry design with U-shaped integral structure of the base and columns promote rigidity and stability
- Ladder design of cross rails increases rigidity and eliminates head deflection
- Over 35 components are hand scraped for fit
- Roller type linear rails support faster feed rates, higher rigidity, and smoother linear motion due to larger contact area compared to ball-type linear rails
- Twin synchronized Y-axis motors increase speed and acceleration capability
- Trunnion table with integral torque motors (instead of gear drives) provides quicker response, higher torque, better positioning accuracy and lower maintenance requirements
- High performance 20,000 rpm motorized spindle to satisfy a multitude of machining requirements
- 32-station carousel ATC
- HSK63A tooling
- Heidenhain TNC 640 Control
- 2 year machine parts warranty
- 1 year control parts and labor warranty
- Factory direct service and 24/7 tech support
X | 31.49" |
Y | 45.28" |
Z | 29.52" |
# Axis | 5 |
RPM | 20,000 RPM |
# ATC | 64 |
Taper | HSK-63A |
Control | CNC (Heidenhain TNC 640) |
Weight | 39683.21 lbs |
