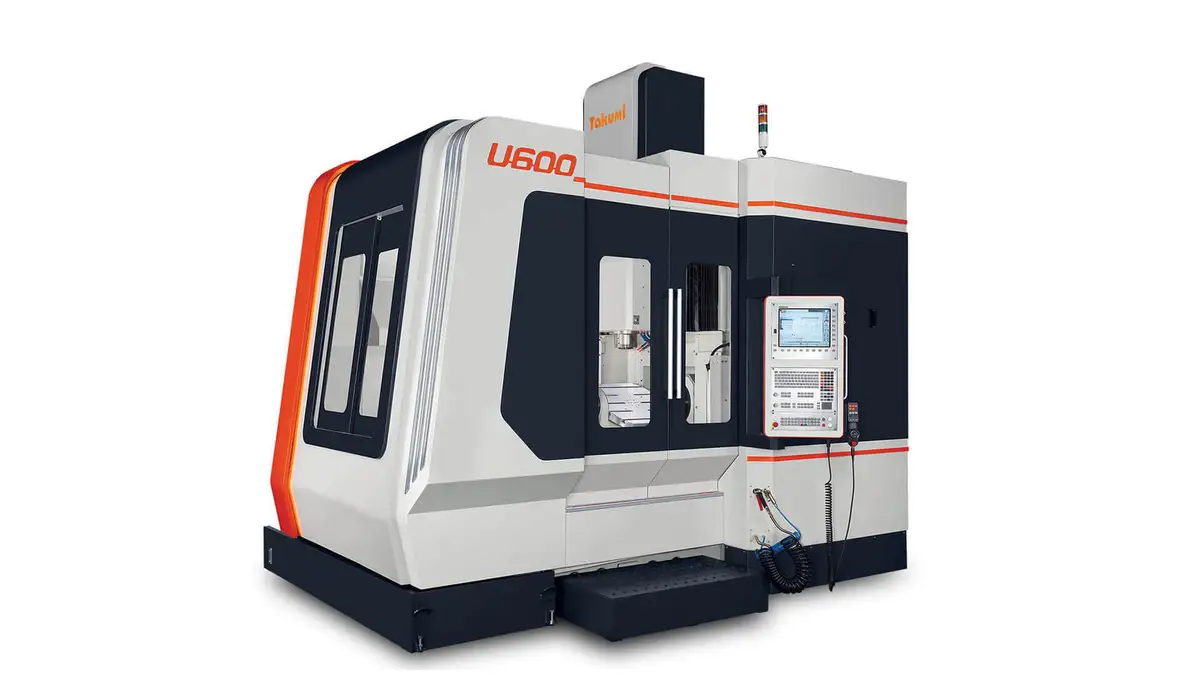

New TAKUMI U600 | Vertical Machining Centers (5-Axis or More)

Description

High-Speed Machining and Outstanding
Surface Finish

- 25.98 x 40.16 x 19.69 in (660 x 1,020 x 500 mm) travels
- 23.62 in diameter (600 mm diameter) table working surface
with 1,102 lbs (500 kg) maximum capacity
- 1,417 inches per minute (36 m/minute) rapids
- 787 in/minute (20 m/minute) cutting feed rates
- 50-station swing arm ATC
- One-piece casting absorbs the thrust forces of high rapids and
fast cutting feeds
- One piece double-column design increases rigidity enabling
higher cutting feeds while maintaining part finish
- Ladder design of cross rails increases rigidity and eliminates
head deflection
- Over 35 components are hand scraped for fit
- Roller type linear rails support faster feed rates, higher rigidity,
and smoother linear motion due to larger contact area compared to ball-type linear rails
- Large diameter, preloaded and pretensioned ballscrews with
fine pitch for accurate motion control
- 15,000 rpm Big Plus® CAT 40 inline spindle
- Heidenhain TNC 640 Control
- 2 year machine parts warranty
- 1 year control parts and labor warranty
- Factory direct service and 24/7 tech support
