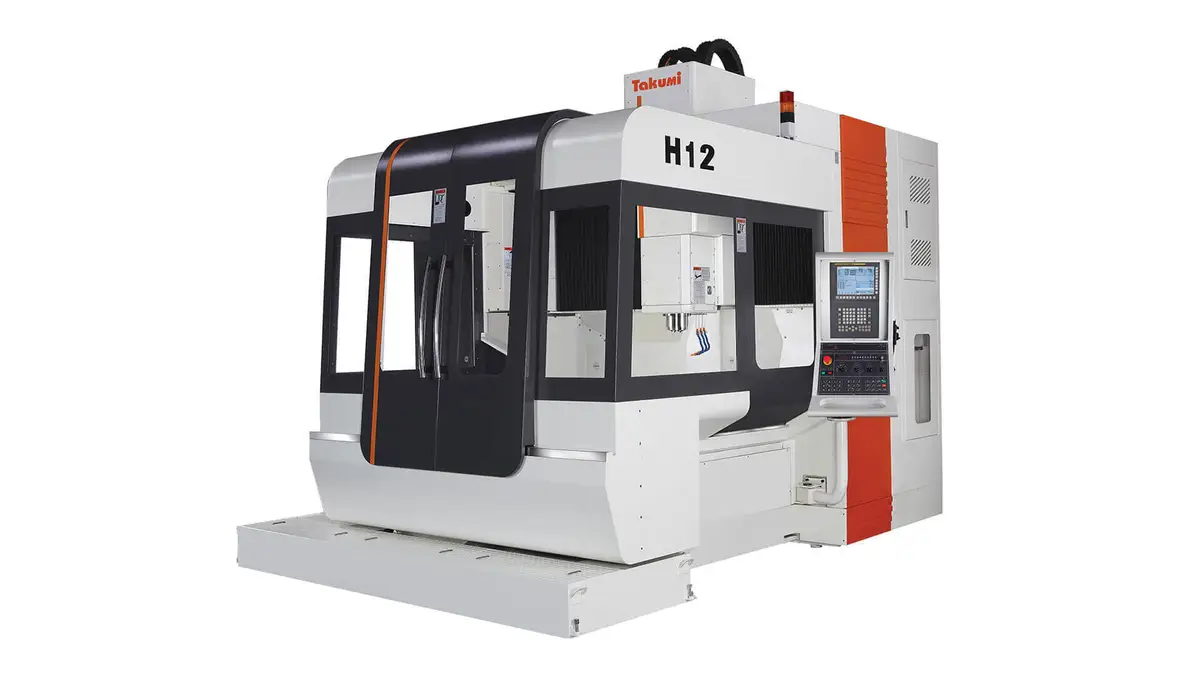

3-Axis Double Column Machining Center
Gantry Machining Centers (incld. Bridge & Double Column)H SERIES CNC MACHINES: DIE/MOLD – AEROSPACE
Unrivaled Performance + Accuracy
- Designed for parts that require outstanding speed and accuracy, and unparalleled surface finish.
- H-Series machines offer an extremely rigid and thermally stable double column design.
- These three-axis models feature high-speed direct drive spindles with up to 15,000 rpm.
- World-class performance for die/mold, aerospace, and other high speed applications
- Extremely rigid and thermally stable double-column design
- Designed for parts that require outstanding speed and accuracy, and unparalleled surface finish
- Close proximity of spindle to bridge casting reduces overhang
- Ladder design of bridge provides greater support for the head casting
- Swiveling control panel optimizes floor space utilization
- Extra-wide door openings facilitate loading and unloading
- Large windows provide optimal visibility
- Robust, precision-machined castings
- Hand-scraped contact areas
- Linear scales ensure repeatability and accuracy
- Roller-type rails on all axes add rigidity
- Integrated washdown and chip management system
- Direct-coupled ballscrews increase accuracy
- Absolute encoders ensure fast start-up
- Inline high-speed spindles
- BIG-PLUS® spindles increase rigidity and reduce tool deflection
- FANUC© 31i-MB Series Control
- Fast, trained, factory service and support
X | 53.2" |
Y | 37.4" |
Z | 23.6" |
Power | 24.8 hp |
RPM | 15,000 RPM |
# ATC | 30 |
Taper | BIG PLUS/BBT 40 |
Table-W | 37.8" |
Table-L | 59.1" |
