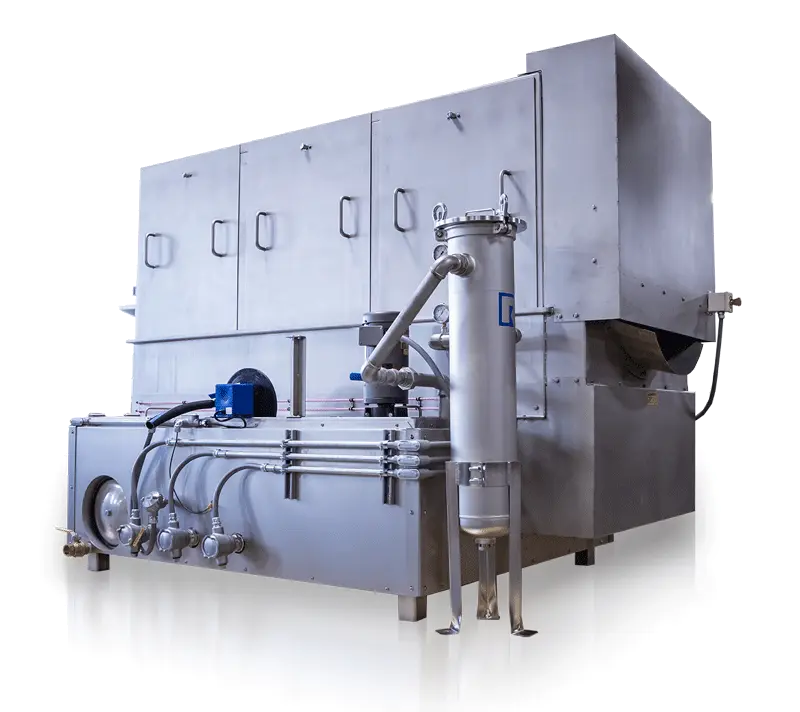

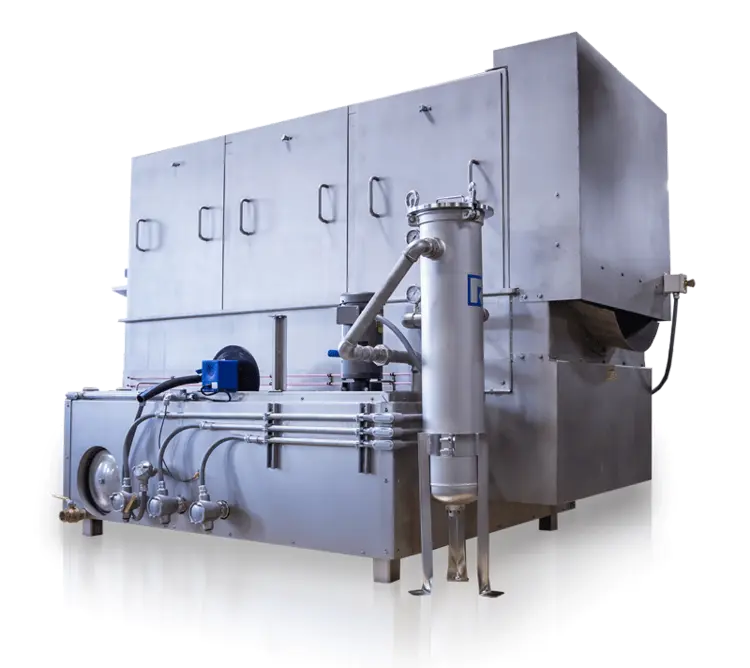

ALMCO 36-96W-E Rotary Drum Washer

Rotary Drum Washers are ideal for washing parts in a mass production application. Stamped parts, fasteners, and ammunition are just some of the applications that utilize Rotary Drum Washers. Parts can be washed in batches, or used in a complete through-feed operation, which allows parts to be fed directly from the washer section to a rotary drying system if required.

The length of the drum can be fully customized based on the customer’s preference. The required helix spacing, and diameter of the machine is determined by the parts being washed.

There are many drum material options making the Rotary Drum Washer ideal for small parts that would be difficult to wash in a belt, cabinet, or agitation washer.

Parts are spiraled through the cleaning drum chamber via the helix auger and are submerged in liquid and sprayed via a nozzle-equipped manifold for complete tumbled cleaning. Parts may pass through various soak, wash, drain, and rinse sections. Rust inhibitor and drying sections are also available.

Rotary Drum Washers vary in auger pitch and drum diameter based on the following specifications:

Standard inner drum diameters are 18’’, 24’’, 30’’, and 36’’.
The standard helix auger inside the drum has a 12’’ pitch, with optional 3’’ increments. The smallest available pitch is 6’’.

FEATURES
Multiple process stages configured for your application
Stainless steel construction
Variable speed drum with sizes from 18″ to 36″ diameter
Processing drum with continuous weld on both sides of helix
Removable stainless steel chip tray in wash
Heated tanks
Float switch for heater protection
Automatic water and compound replenishment
OPTIONS
Bag filtration system (mild steel or stainless steel)

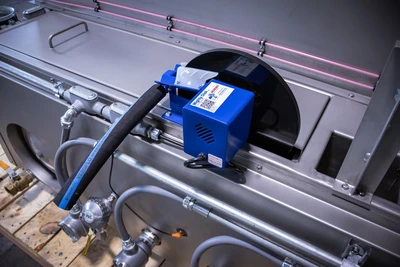

Oil skimmer or coalescer
Insulated wash and rinse tanks
Vapor exhaust duct connections and vapor exhaust system
PLC and touch screen controls
Product lifters
Stainless steel or mild steel filter housings
UL 508A electrical controls
