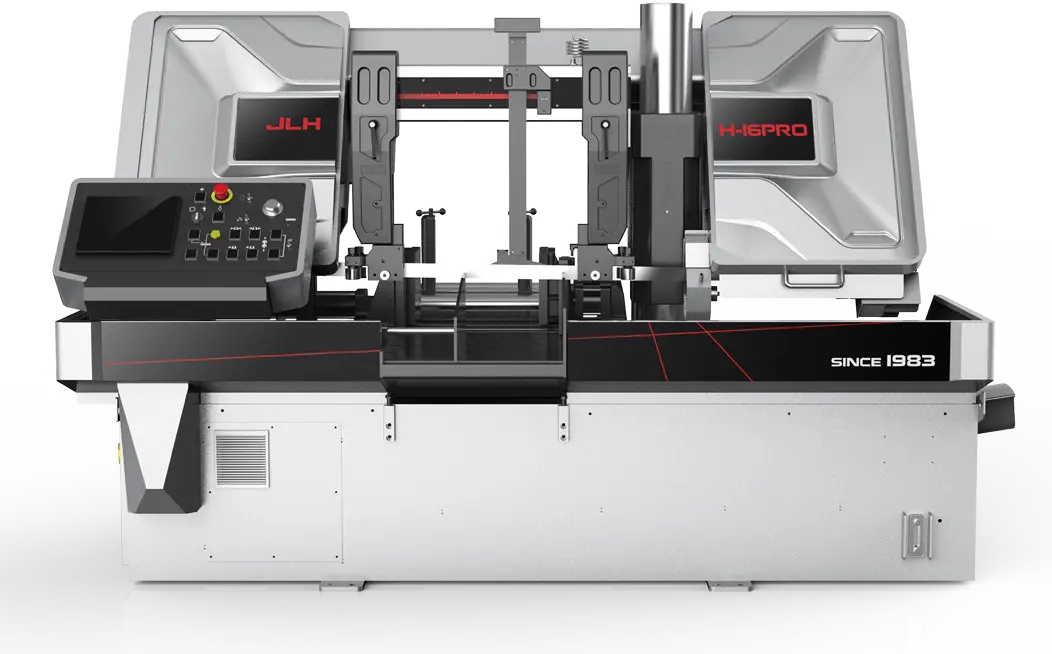

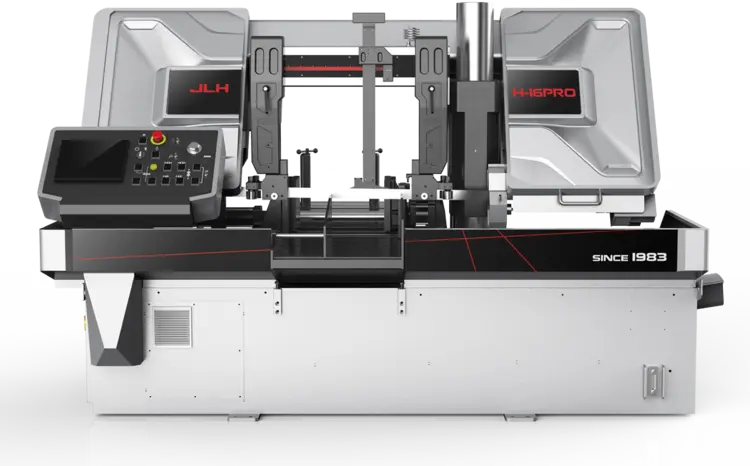

H-PRO Series (NC Smart Bandsaw)
Have one to sell?
ConditionUsed
1 available
Standard Equipment:
Automatic chip conveyor
Hydraulic blade tension
Variable blade speed controlled by inverter Base adjustment
Schneider low voltage Electric
CE certified limit switches
CE certified control buttons
Intelligent self-adapting sawing system
Optional Equipment:
Servo feeding Roller-type bed
Capacity (inch) 27.6", 31.5" x 27.6"
Blade size (inch) 318.9" x 2.1" x 0.06"
Blade speed (fpm) 65.6-262.5
Blade drive motor (hp) 14.7
Hyd. pump motor (hp) 2.0
Coolant pump motor (hp) 0.2
Hyd. oil (gallon) 18.3
Cutting liquid (gallon) 36.9
Machine size (LxWxH) (inch) 155" x 88" x 100"
Machine Weight (LBS) ≈ 13228
Direct-Drive Gearbox Gearbox
