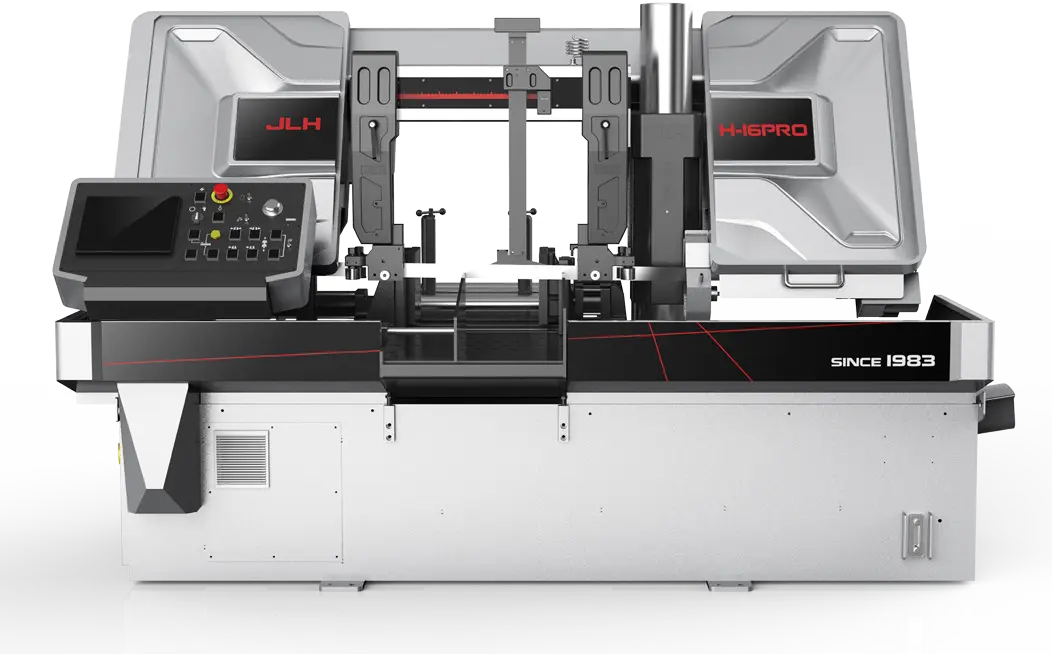

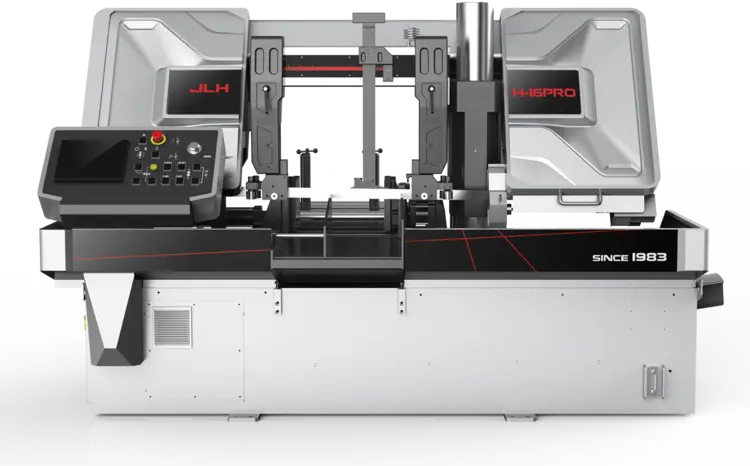

H-PRO Series (NC Smart Bandsaw)
Have one to sell?
ConditionUsed
1 available
Standard Equipment:
Automatic chip conveyor
Hydraulic blade tension
Variable blade speed controlled by inverter Base adjustment
Schneider low voltage Electric
CE certified limit switches
CE certified control buttons
Intelligent self-adapting sawing system
Optional Equipment:
Servo feeding Roller-type bed
Capacity (inch) 20.0", 20.0" x 20.0"
Blade size (inch) 244.1" x 1.6" x 0.05"
Blade speed (fpm) 65.6-262.5
Blade drive motor (hp) 10.2
Hyd. pump motor (hp) 2.0
Coolant pump motor (hp) 0.18
Hyd. oil (gallon) 18.3
Cutting liquid (gallon) 36.9
Machine size (LxWxH) (inch) 89" x 122" x 77"
Machine Weight (LBS) ≈ 7275
Direct-Drive Gearbox Gearbox
