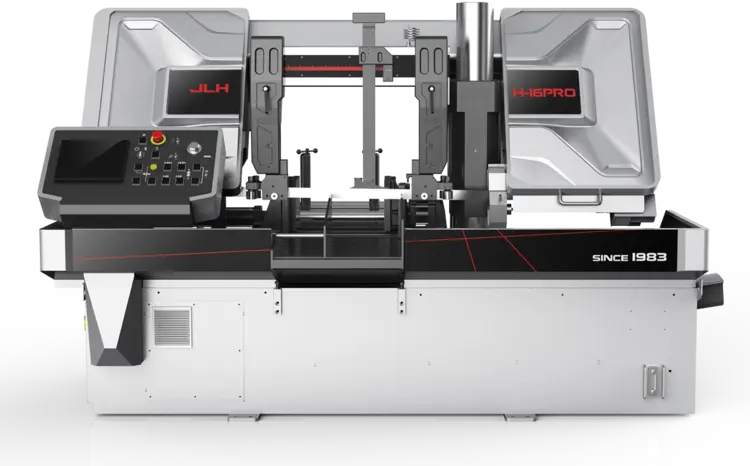

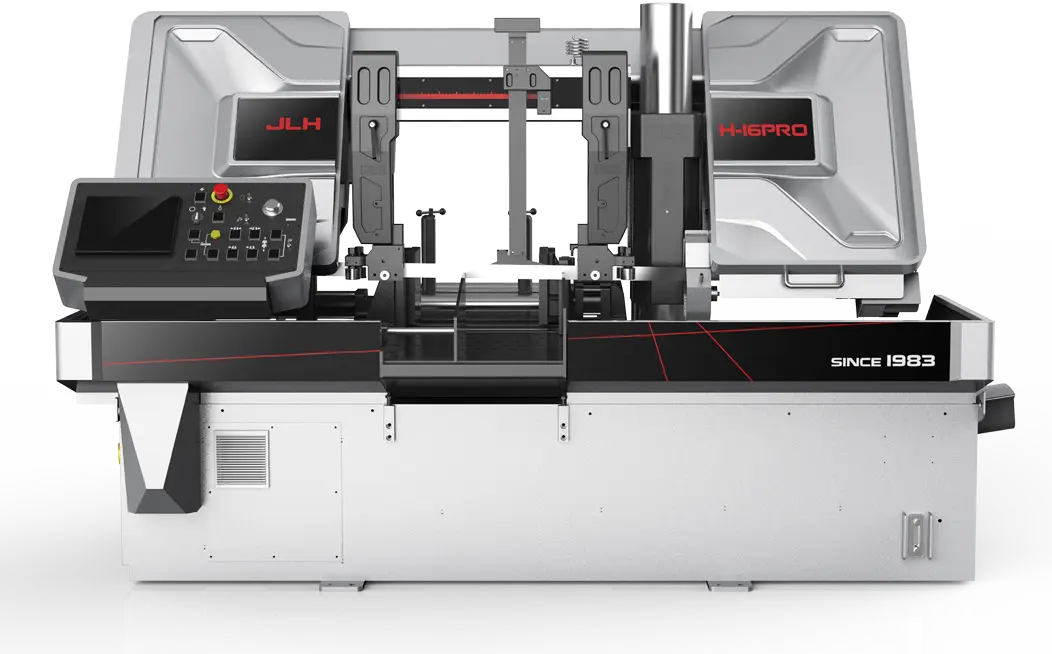

H-PRO Series (NC Smart Bandsaw)
Have one to sell?
ConditionUsed
1 available
Standard Equipment:
Automatic chip conveyor
Hydraulic blade tension
Variable blade speed controlled by inverter Base adjustment
Schneider low voltage Electric
CE certified limit switches
CE certified control buttons
Intelligent self-adapting sawing system
Optional Equipment:
Servo feeding Roller-type bed
Capacity (inch) 161", 16.1 x 16.1"
Blade size (inch) 202.8" x 1.6" x 0.05"
Blade speed (fpm) 32.8-262.5
Blade drive motor (hp) 10.2
Hyd. pump motor (hp) 2.0
Coolant pump motor (hp) 0.18
Hyd. oil (gallon) 18.3
Cutting liquid (gallon) 31.7
Machine size (LxWxH) (inch) 89" x 104" x 65"
Machine Weight (LBS) ≈ 5511
Direct-Drive Gearbox Gearbox
