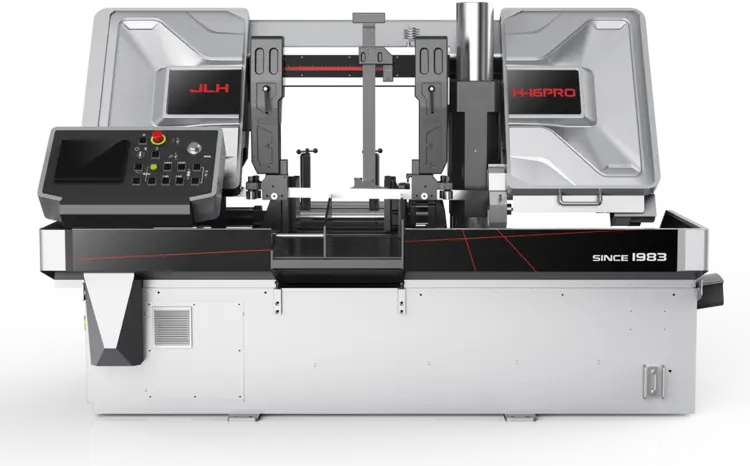

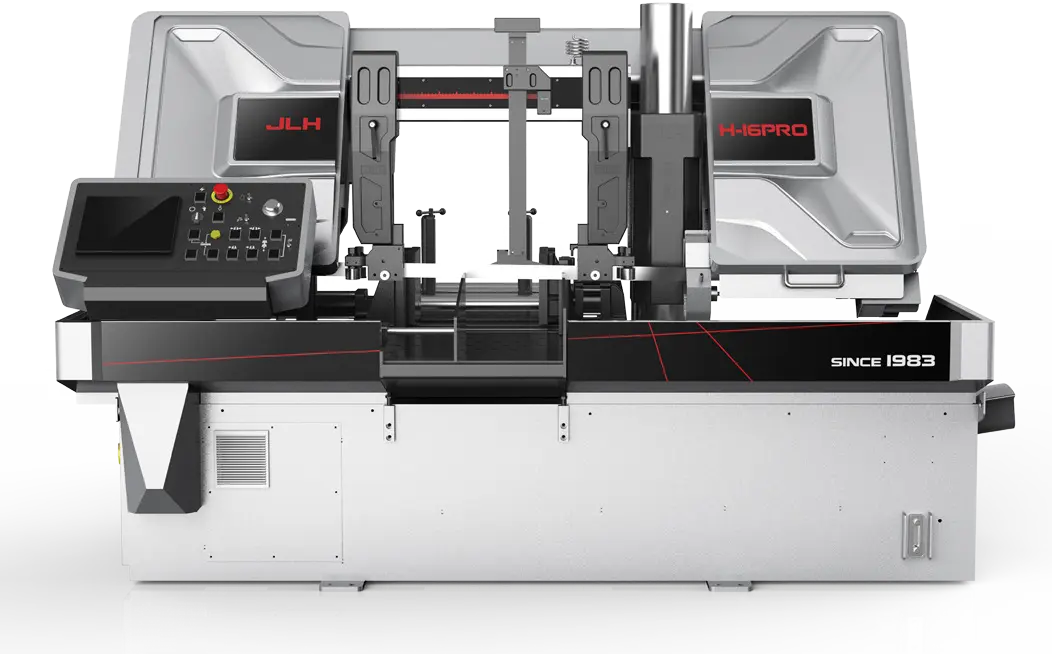

H-PRO Series (NC Smart Bandsaw)
Horizontal Band SawsStandard Equipment:
Automatic chip conveyor
Hydraulic blade tension
Variable blade speed controlled by inverter Base adjustment
Schneider low voltage Electric
CE certified limit switches
CE certified control buttons
Intelligent self-adapting sawing system
Optional Equipment:
Servo feeding Roller-type bed
Capacity (inch) 12.2", 12.2 x 12.2"
Blade size (inch) 162.0" x 1.3" x 0.004
Blade speed (fpm) 32.8-262.5
Blade drive motor (hp) 6.8
Hyd. pump motor (hp) 1.5
Coolant pump motor (hp) 0.12
Hyd. oil (gallon) 15.8
Cutting liquid (gallon) 23.7
Machine size (LxWxH) (inch) 89" x 91" x 61"
Machine Weight (LBS) ≈ 3748
Direct-Drive Gearbox Gearbox
