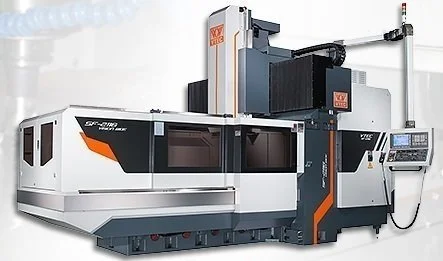

VISION WIDE SF- 2116
Gantry Machining Centers (incld. Bridge & Double Column)SF series, the most popular bridge type CNC milling machining center of Vision Wide, is 3-axis linear way design with rapid traverse reaching 24 m / min and cutting feed rate reaching 10 m/ min. Suitable for fine components machining and mold cutting.
Its full casting structure provides long-term accuracy stability, and an ultra-wide column structure with a big dimension surface provides the best rigid support for the spindle and YZ axis.
Worth value, excellent manufacturing quality, and a complete range of specifications.
- Ultra-wide base of X axis with thick high rigidity table enhances table load capacity and ensures the best dynamic level accuracy.
- Large stepped design of Y axis makes guide ways close to beam and spindle which effectively increases the rigidity of cutting load.
- Z axis 15m rapid traverse, high acceleration/deceleration performance to achieve contour accuracy of high-speed mold machining.
- Spindle and thermal compensation function for environmental temperature change can be chosen to ensure the accuracy change within 0.02mm which is influenced by environmental temperature change.
X | 2,100 mm |
Y | 1,600 mm |
Z | 800 mm |
Power | 18.5 kW |
RPM | 6,000 RPM |
Table-W | 1,500 mm |
Table-L | 2,000 mm |
