5-axis machining center
Have one to sell?
ConditionNew
New

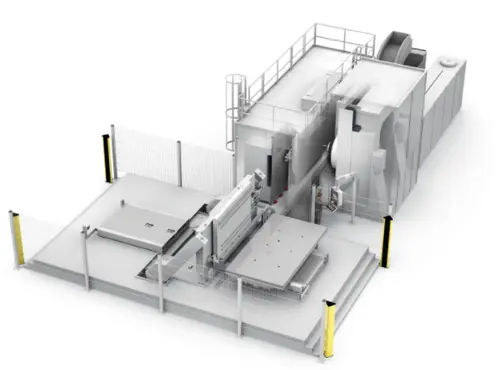

Scharmann has developed the ECOSPEED F for high-speed machining of mediumsized aluminium structural components. The horizontal spindle arrangement, the vertical pallet arrangement and the Sprint Z3 parallel kinematic machining head, which delivers high travel speeds (50 m/min) and accelerations (9.81 m/s²), all come from the successful ECOSPEED.
What sets the F version apart from the standard ECOSPEED is that the machine column is stationary. The pallet travels in the X direction on the vertically arranged table group. The ECOSPEED F is equipped with a rotating double pallet station, located parallel to the X-axis, which enables component loading and unloading during the machining cycle.
Scharmann has developed the ECOSPEED F for high-speed machining of mediumsized aluminium structural components. The horizontal spindle arrangement, the vertical pallet arrangement and the Sprint Z3 parallel kinematic machining head, which delivers high travel speeds (50 m/min) and accelerations (9.81 m/s²), all come from the successful ECOSPEED.
What sets the F version apart from the standard ECOSPEED is that the machine column is stationary. The pallet travels in the X direction on the vertically arranged table group. The ECOSPEED F is equipped with a rotating double pallet station, located parallel to the X-axis, which enables component loading and unloading during the machining cycle.
Imperial
| X | 8,300 mm |
| Y | 3,000 mm |
| Z | 670 mm |
| Power | 120 kW |
| RPM | 30,000 RPM |
| # ATC | 129 |
| Taper | HSK A63/80 |
| Pallet-W | 2,000 mm |
| Pallet-L | 8,000 mm |
| # Axis | 5 |
