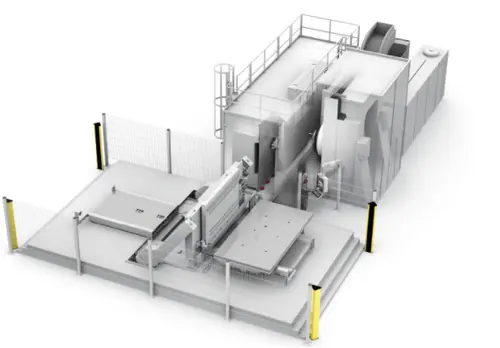

STARRAG ECOSPEED F 2040
Horizontal Machining CentersScharmann has developed the ECOSPEED F for high-speed machining of mediumsized aluminium structural components. The horizontal spindle arrangement, the vertical pallet arrangement and the Sprint Z3 parallel kinematic machining head, which delivers high travel speeds (50 m/min) and accelerations (9.81 m/s²), all come from the successful ECOSPEED.
X | 4,300 mm |
Y | 3,000 mm |
Z | 670 mm |
Power | 120 kW |
RPM | 30,000 RPM |
# ATC | 129 |
Taper | HSK A63/80 |
Pallet-W | 2,500 mm |
Pallet-L | 4,000 mm |
# Axis | 5 |
