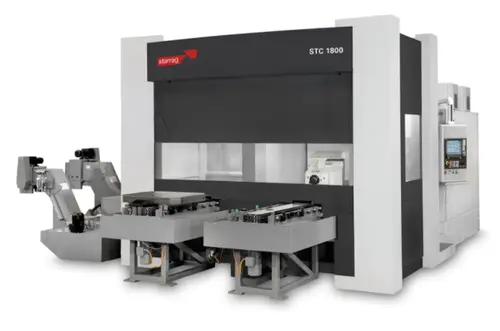

High performance simultaneous 5 axis machining center
Vertical Machining Centers (5-Axis or More)The STC series has been designed to provide unrivalled economy in the machining of the most demanding structural parts, multi-blades and casings with long cycle times, and provide the customer with a whole host of practical options. These machining centers have excellent static and dynamic properties as well as a tried and tested rotatable head, making them the benchmark for heavy chip removal in titanium and Inconel part for the aerospace and power generation industries.
Construction Principle
- Thermo-symmetrical design
- Elements of closed welded design
- Extremely stable and low vibration
- Optimized using the FE method
- High running and positioning accuracy
- Short positioning and start-up times thanks to high acceleration
X | 133.8" |
Y | 74.8" |
Z | 112.2" |
# Axis | 5 |
Power | 50 hp |
RPM | 8,000 RPM |
Taper | ISO 50 (HSK-A100) |
Dimensions | 588L x 405W x 215H |
Weight | 147,709 (LBS) |
