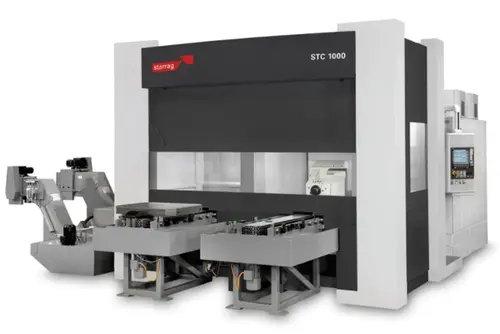

High performance simultaneous 5 axis mill turn center
Vertical Machining Centers (5-Axis or More)The STC series has been designed to provide unrivalled economy in the machining of the most demanding structural parts, multi-blades and casings with long cycle times, and provide the customer with a whole host of practical options. These machining centers have excellent static and dynamic properties as well as a tried and tested rotatable head, making them the benchmark for heavy chip removal in titanium and Inconel part for the aerospace and power generation industries.
Construction Principle
- Thermo-symmetrical design
- Elements of closed welded design
- Extremely stable and low vibration
- Optimized using the FE method
- High running and positioning accuracy
- Short positioning and start-up times thanks to high acceleration
X | 1,700 mm |
Y | 1,600 mm |
Z | 1,950 mm |
Power | 37 kW |
RPM | 15,000 RPM |
Taper | HSK-A63 |
Dimensions | 9500L x7800W x 4550H mm |
Weight | 42 (TONS) |
