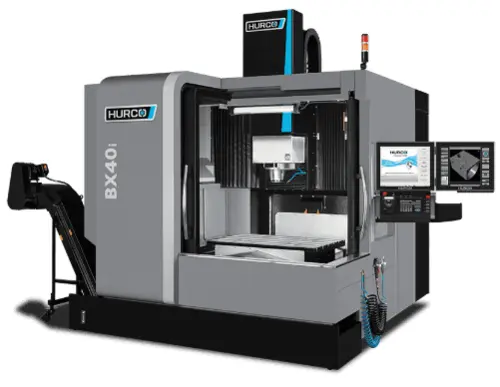

HURCO BX40I
Vertical Machining CentersThe stability of the double-column, the ladder design of the Z-axis, and the overall weight of the machine (over 20,000 lbs.) provide exceptional accuracy and outstanding surface finish capabilities. Equipped with an 18,000 rpm spindle, the BX40i is designed for high speeds and tight tolerances.
X | 40.2" |
Y | 27.6" |
Z | 19.7" |
Power | 47 hp |
RPM | 18,000 RPM |
# ATC | 30 |
Taper | HSK 63 |
Table-W | 35.4" |
Table-L | 16.1" |
# Axis | 3 |
Dimensions | 124'' H |
Weight | 20062 lbs |
