New

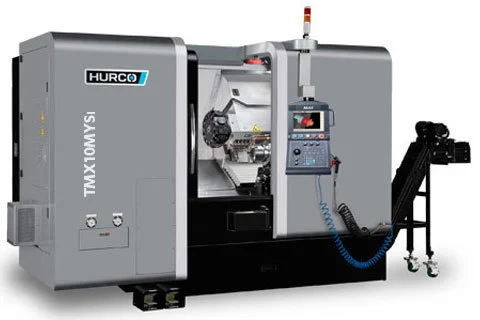

HURCO TMX10MYSI
CNC Lathes
The TMXMY/S mill turn lathes are true slant-bed lathes with all-digital drives and motors and absolute encoders on all linear axes. The addition of the Y-axis allows you to machine a pocket with straight walls and flat bottoms or perform off-center machining operations with just a click of a box.
| Swing | 22" |
| Machining Length | 24.7" |
| # Axis | 4 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 37.3 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 14.8" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Dimensions | 102.2"H |
| Weight | 14520 (LBS) |
