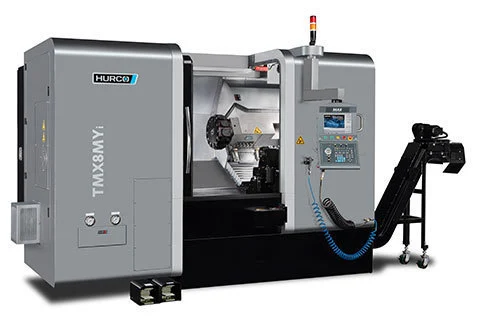

HURCO TMX8MYI
CNC Lathes
The TMXMY/S mill turn lathes are true slant-bed lathes with all-digital drives and motors and absolute encoders on all linear axes. The addition of the Y-axis allows you to machine a pocket with straight walls and flat bottoms or perform off-center machining operations with just a click of a box.
| Swing | 20" |
| Machining Length | 20.8" |
| # Axis | 4 |
| Chuck Size | 8" |
| Bar Capacity | 2.5" |
| Power | 37.3 hp |
| Max RPM | 4,500 RPM |
| Turning Dia | 13.2" |
| Tailstock | No |
| Live Tooling | Yes |
| Dimensions | 102.2"H |
| Weight | 14520 (LBS) |
